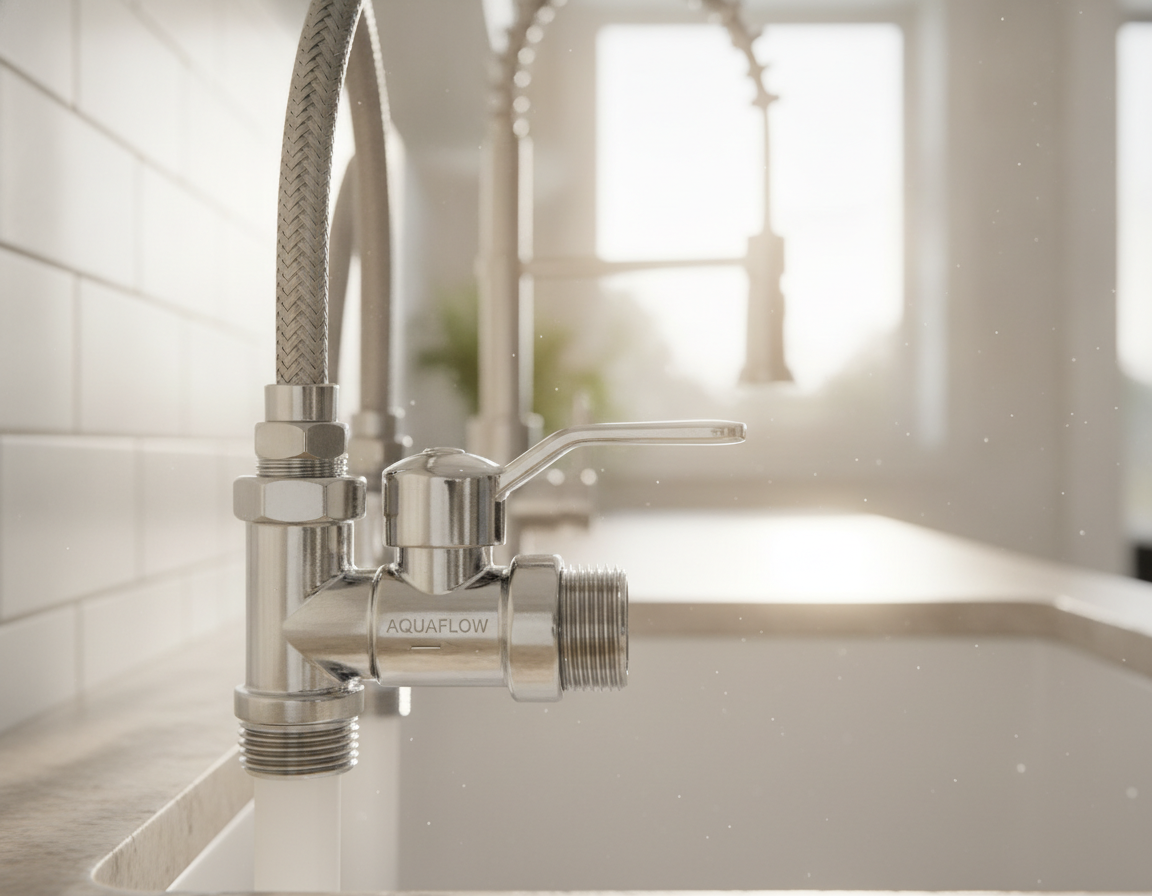

A low-profile angle stop is an L-shaped valve installed where the supply line connects with a fixture. You will find these valves under sinks, behind toilets, and at many appliance connections. When a Plumbing Angle Stop works properly, it allows one fixture to be shut off without interrupting water to the whole home. This makes repairs and replacements faster and less disruptive.
Plumbing Angle Stops
Most home angle stops are 3–6 inches tall and turn water 90 degrees toward the fixture. Modern installations favor quarter-turn ball-style Angle Stop Valve designs. These are quicker to operate and tend to last longer. If an angle stop corrodes, leaks, or becomes stiff, replacing it helps prevent water damage and simplifies future maintenance.
Important Points
- Plumbing Angle Stops let you shut off water to one fixture without touching the house main.
- Angle Stops Plumbing are usually found beneath sinks, behind toilets, and near fixtures where quick access matters.
- An Angle Stop Valve typically measures 3–6 inches and turns water 90 degrees toward the fixture.
- Quarter-turn models are commonly preferred because they offer dependable performance.
- Replace valves that leak, corrode, or become difficult to operate to avoid water damage.
Understanding An Angle Stop And Why It Matters
An angle stop is a compact shutoff valve placed where the supply line connects to a fixture. It controls water to a single fixture so repairs, upgrades, or replacements can happen without closing the whole-house main. Homeowners, plumbers, and inspectors depend on these valves to keep maintenance manageable.
Definition And Simple Explanation
An angle stop is a 90-degree valve placed at the fixture supply. Angle Stop Valves come in several styles, including older multi-turn stem designs and newer quarter-turn ball designs. The Plumbing Angle Stop fits neatly under sinks and behind toilets while saving space.
Where Angle Stops Are Installed In A Typical Home
Plumbing Angle Stops are commonly found under kitchen and bathroom sinks. They sit at the back of cabinets where the supply line enters. Toilet stops mount on the wall behind the tank. You will also see angle stops at appliance connections such as dishwashers, ice makers, washing machines, and near some water heaters for cold-water shutoff.
Why Angle Stops Help Homeowners
A major advantage of an Angle Valve For Sink is fixture isolation. With a working Plumbing Angle Stop, you can shut off a single sink, toilet, or appliance line while fixing a leak or replacing a fixture. This helps prevent minor leaks from becoming major water-damage events and keeps household disruption lower.
Convenience is another key benefit. Angle Stops Plumbing are space-saving, quick to access, and reduce repair downtime. Periodic exercising of the valve keeps it operable. Upgrading old multi-turn stops to modern quarter-turn Angle Stop Valve models speeds emergency responses and lowers stress.
Difference Between Angle Stop And Angle Seat Valve
Residential angle stops are made for fixture-level potable water service. They are designed for sinks, toilets, and common appliances. An industrial Angle Seat Valve is a different type of valve. It handles high-pressure, high-temperature, or corrosive media found in steam, chemical, and HVAC systems. Angle seat valves use metal seats and pistons for durability in demanding environments, while an Angle Stop is a simple residential fixture shutoff.
Angle Stop Types And How To Choose One
Selecting the correct angle stop involves comparing materials, operating style, connection type, and extra features. The following overview helps homeowners and plumbers choose Plumbing Angle Stops that are code-conscious.
Common Valve Materials
Brass is the standard material for Angle Stops. It resists corrosion and can last 10–20 years, making it ideal for Quarter-Turn Angle Stops. Stainless steel bodies are useful in humid basements, coastal locations, and exposed areas where rust resistance matters. Plastic-bodied stops cost less but are less durable and may degrade in hot-water loops. Always choose a Lead-Free Angle Stop for potable water in the United States to meet federal and state standards.
Valve Operation Styles
Quarter-turn valves use a ball or disc and open with a 90-degree turn. They provide quick shutoff, low torque, and resistance to mineral buildup, making them a top choice for frequent use and emergencies. Multi-turn valves use a rising stem and require several rotations for full shutoff. They provide finer flow control but are more likely to leak or stick in older homes.
Angle Stop Connection Types
Compression Angle Stop fittings use a nut and ferrule, making them common for copper and CPVC stub-outs. They are popular in remodels because they can be installed without soldering or open flame. Sweat Angle Stop connections are soldered to create a slim, permanent joint where torch work is safe and allowed. FIP-threaded valves screw onto male adapters and require PTFE tape or pipe sealant. Push-Fit Angle Stop products, including SharkBite-compatible models, slip onto copper, CPVC, or PEX for tool-free installs. They are useful for DIY work or cramped areas, while Compression Angle Stop options remain common where future rework is expected.
Extra Angle Stop Features
Some Angle Stop Valve models include a Water Hammer Arrestor Angle Stop. They use an air chamber or piston to absorb pressure shock from quick-closing fixtures and reduce pipe banging. In humid or coastal locations, a Coastal Angle Stop with corrosion-resistant finishes, stainless internals, and anti-seize stems can improve service life. Lead-Free Angle Stop markings on the body confirm potable-water compliance. Choose a valve that matches the pipe material, connection type, and service conditions to reduce premature failure.
Plumbing Angle Stops
Plumbing angle stops control water flow to fixtures with a right-angle design. The choice of size and style affects both function and code compliance. Below, we cover common markings, placement, potable-water standards, and modern standardization trends.
Common Sizes And Reading Valve Markings
In most homes, the inlet side is commonly 1/2 inch nominal, while the outlet to the fixture is often 3/8 inch compression. Valve labels may show a format like 1/2 x 3/8 or 1/2” MIP x 3/8” OD. Those markings show which side connects to the supply pipe and which side connects to the fixture hose. Some labels specify 3/8 COMP for compression outlets. Make sure the inlet matches your supply pipe, whether it is 1/2 FIP, 1/2 MIP, or 1/2 sweat.
Common Home Placement
Angle stops are usually installed under kitchen sinks, beneath bathroom vanities, and behind toilets. Dedicated stops may also serve dishwashers, ice makers, washing machines, water heaters, and other appliances. Under-sink valves are commonly located at the rear of cabinets, while toilet stops are generally visible near the wall behind the tank.
Potable Water Code And Safety Notes
In the United States, valves used on drinking-water lines must comply with lead-free requirements for wetted surfaces. Look for a Lead-Free Angle Stop with compliant markings and documentation. Contractors should follow local plumbing codes and provide the appropriate certifications, testing information, and warranty support.
Modern Trends And Recommended Standards
Modern Angle Stops often use quarter-turn ball designs. The Quarter-Turn Angle Stop gives quick emergency shutoff and long life with brass construction. Experts often recommend a brass 1/2 x 3/8 angle stop for sinks and toilets for easier stocking and maintenance. New installations increasingly include models with arrestors, lead-free markings, and other potable-water protection features.
Practical Checklist For Selection
- Check Valve Markings before buying so the inlet type and outlet size match your system.
- Make sure the Angle Valve For Sink or toilet stop matches the supply hose, fixture threads, and tank connection.
- Specify a Lead-Free Angle Stop when the line serves potable water.
- Standardize on Quarter-Turn Angle Stop 1/2 x 3/8 units for easier repair and reliability.
Installing And Replacing Angle Stops: Tools, Steps, And Best Practices
Before working on a plumbing angle stop, decide whether the main water supply needs to be shut off. Only shut the main if the existing stop will not close fully, is damaged, or is frozen. For most replacements, you can isolate the line using the valve under the sink. Always open a downstream faucet to relieve pressure and keep towels and a bucket ready.
Before the repair begins, collect the necessary tools, fittings, and supplies. You will need an adjustable wrench, backup wrench, tube cutter, and deburring tool. Emery cloth, PTFE tape, a marker, and a flashlight are also helpful for clean preparation and inspection. For push-fit work, use the manufacturer’s push-fit angle stop and a PEX stiffener where needed; for compression jobs, keep spare ferrules and nuts available. Penetrating oil can help with stuck fittings, while a heat shield is useful around sweat connections.
Tool Checklist:
- Adjustable wrench and backup wrench
- Tube cutter and deburring tool
- Thread tape and insertion-depth marker
- Push-fit angle stop and PEX stiffener
- Spare ferrules, nuts, penetrating oil, and towels
Follow specific steps for each connection type. For compression, slide the nut and ferrule onto the pipe, then seat the valve against the pipe shoulder. Start the nut by hand, then tighten another 1/4–1/2 turn with a wrench. Use a backup wrench on the valve body or outlet so the stub-out does not twist.
For push-fit installation, make a square pipe cut and deburr the end thoroughly. Mark the insertion depth and push the valve straight on to the depth mark. After installation, give the fitting a light tug to confirm it has locked in place. Push-fit angle stop fittings work on copper, CPVC, and PEX; use a stiffener for PEX where required.
Sweat angle stop joints require careful handling. Remove or protect seals, clean and flux the pipe and valve cup, heat evenly, and apply solder properly. After cooling, wipe the joint to remove residue. Use a heat shield or remove seals to prevent damage during sweating.
For threaded connections such as a FIP angle stop, wrap male threads with PTFE tape using three to four wraps and start the valve by hand to avoid cross-threading. Tighten until aligned and sealed, then connect the supply line and test slowly.
Test the work by turning water on slowly and watching the joints. Open the angle stop and fixture in stages rather than all at once. Wipe joints to spot tiny weepers. Exercise the valve and recheck after pressure stabilizes to catch slow leaks.
Several common mistakes can cause leaks or early valve failure. Over-tightening compression nuts can deform ferrules and cause leaks. Do not reuse damaged ferrules; when necessary, cut back the pipe and install a new ferrule. Avoid sweating valves without protecting seals or removing internal parts. Avoid twisting push-fit valves during insertion and always follow the manufacturer’s insertion-depth marks.
Typical problems include frozen or leaking stops that require main shutoff, incorrectly applied PTFE tape on threaded joints, and outlet nuts tightened without a backup wrench. Keeping spare parts available and following proper tightening guidance helps reduce repeat repairs.
Angle Stop Problems And Quick Repairs
Small leaks, stuck handles, and stiff valves are common angle stop problems for homeowners. A quick inspection can show whether the valve needs a minor repair or complete replacement for dependable service.
Leaking At The Stem Or Handle
In older multi-turn valves, seepage at the stem usually starts with a loose packing nut. A careful 1/8-turn tightening with an adjustable wrench may stop the leak. If water still seeps, the internal washer, O-ring, or packing may be worn and the valve may need replacement.
Frozen Or Stuck Valves
Stuck angle stops often result from Mineral Buildup or rust. Applying a penetrating product such as WD-40 for about ten minutes may help. A gentle back-and-forth motion may help break the handle free. If the valve stays frozen or the handle feels brittle, replacement is safer than forcing it and risking a flood.
Compression Joint Weeps
A continuing compression-joint leak often points to a crooked ferrule, damaged pipe end, or poor seating. To fix it, loosen the nut, reseat the ferrule, and clean the pipe with emery cloth. If the ferrule is worn, cut back the pipe, install a new ferrule, and tighten carefully to prevent more leaks.
When To Upgrade
If a home has repeated leaks, frozen handles, visible corrosion, or valves older than about ten years, modern angle stops are worth considering. A Quarter-Turn Upgrade to a ball-style valve can improve shutoff speed, resist Mineral Buildup, and make emergency service more dependable.
Simple Troubleshooting Checklist
- Tighten the packing nut slightly for stem drips.
- Use Penetrating Oil and gentle motion for stuck valves.
- Reseat the ferrule or cut back the pipe for compression leaks.
- When valves repeatedly freeze, leak, or stick, upgrade to quarter-turn stops.
Regularly exercising angle stops and checking for corrosion helps identify issues early. Promptly addressing leaks, stuck valves, or weeping joints prevents larger repairs and maintains Angle Stop Reliability.
Conclusion
The Plumbing Angle Stops Guide highlights the importance of these small but critical components. They allow homeowners to isolate specific fixtures without affecting the entire system. Choosing the right material, operation style, and connection type makes repairs easier. It also reduces the risk of water damage during upgrades.
For best performance, the industry often recommends lead-free, quarter-turn brass 1/2 x 3/8 stops. Integrated arrestors are also useful where water hammer is a concern. Homeowners should periodically test valves and replace Plumbing Angle Stops that leak, stick, or corrode. Parts may cost $6 to $60, while professional installation can range from $75 to $200 depending on location and complexity.
If installation is uncertain, consulting a licensed plumber is wise. A plumber can ensure code compliance and provide warranty-backed work. This protects fixtures and simplifies maintenance. It also follows best practices in Angle Stops Plumbing for modern residential installations.
