An FTTH Cable Production line is a coordinated suite of modules that transforms glass fiber into ready-to-ship drop and distribution outputs with reliable uniform quality.

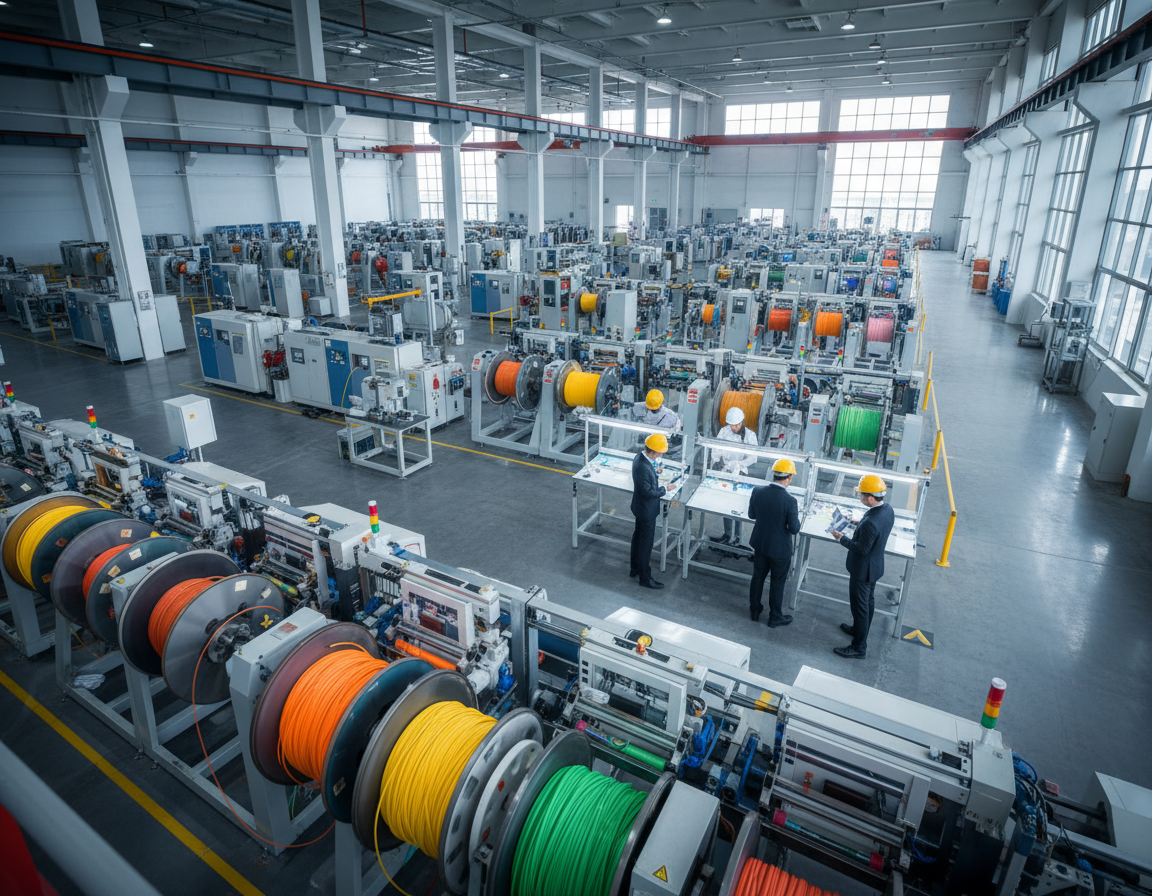

FTTH Cable Production Line
This overview helps operations leaders, process engineers, procurement teams, and students in the United States who assess how industrial manufacturing equipment converts delicate fiber into robust cables for service and communication networks.
At the heart of the line, the end-to-end objective is straightforward: protect the fiber, keep attenuation low, build in installation strength, and produce a cable that holds up to both indoor and outdoor environments.
Expert equipment means reliable tension regulation, synchronized drives, defined process windows, and clear, auditable documentation for customer sign-off. This article helps align the line setup, materials, and validation plan to the desired cable design instead of purchasing machines first and fixing the process later.
Readers will map stages such as fiber preparation, buffering and coating, stranding, integration of strength elements, sheathing (outer jacket extrusion), optional armor, and final testing and packaging.
Key points: A properly specified line minimizes defects and supports predictable delivery. Lock in process alignment before equipment purchase to reduce time and cost.
How A Fiber Optic Cable Production Line Operates Today
Where last-mile drop and distribution demands meet factory practice.
Modern production lines convert fine glass fiber into finished products used in U.S. broadband rollouts. Last-mile drop cable and ftth drop demand drives high volumes, so manufacturers emphasize repeatable handling methods and compliance with standards.
Core Modules And Material Flow
Material moves through a clear sequence: pay-off feed → guiding + tensioning → secondary coating and coloring → organization and SZ stranding → strength member feed → jacketing/sheathing → cooling / curing → take-up and testing.
Modules To Outcomes
Stable fiber handling lowers attenuation and protects signal integrity for data and communications. Uniform jacketing supports installation and connector prep. In-line monitors detect loss events before reels exit production.
- Indoor vs. outdoor: different jacket compounds and buffering.
- Armored variants add steel tape or wire to improve rodent and crush resistance.
- Drop designs typically use tight-buffered fibers and easier connector preparation.
Procurement teams should see lines as modular. Factories can add armoring or remove steps to match the cable design. Output limits often come from curing and dimensional stability, not simply motor speed.
Define Product And Data Standards Before Buying Equipment
Begin with a clear product map that spells out cable type, core count, service environment, and end-use scenarios. This early definition narrows which modules the line must include, from tight-buffer units to SZ stranding and jacket extrusion systems.
Select Standards & Measurable Targets
Pick fiber standards such as ITU-T G.652D single-mode or bend-insensitive ITU-T G.657A1/A2 based on bend requirements and routing constraints. Record optical loss budgets, tensile strength, crush/bend limits, and environmental durability targets before vendor selection.
- Identify the precise product type and fiber/core count so you can define modules and control requirements.
- Specify attenuation (loss) budgets and mechanical strength targets to guide material choice.
- Define required materials (buffer polymers, jacket compounds) and confirm supplier availability in the U.S.
Data Standards, Traceability, And Validation
Convert targets into factory information: captured process variables, lot-level traceability, and required customer test reports for acceptance. Use R&D pilot runs to validate settings and cut scale-up time.
Fiber Draw Tower
| Target | Factory Implication | Typical Action |
|---|---|---|
| Minimal attenuation | Control of tension and alignment | In-line attenuation checks |
| Higher tensile strength | Strength member selection | Integrate aramid or metal |
| Bend resistance | Fiber selection | Use G.657 variants |
Build Quality Into The Optical Fiber: Core, Cladding & Coating Essentials
High-quality optical performance starts in the glass, where core purity and cladding design define the boundaries for loss.
The core and cladding make up the core layer structure: an ultra-pure silica core carries the light while a lower-index cladding confines it. This geometry is the foundation for low-loss transmission and stable optic behavior in finished cables.
From Preform To Fiber Draw
Manufacturing starts with preform laydown and consolidation. Removing moisture in a high-temperature furnace reduces defects that increase attenuation.
Drawing pulls the glass into a micron-scale strand. Geometry control at this stage directly supports stable attenuation and predictable transmission performance. One blank can produce roughly 5 km of fiber, so process stability saves time and money.
Primary Coating And Color Coding
Primary coating guards against scratches and handling damage; it is not the main strength element. Color ID makes splicing, troubleshooting, and downstream fiber management easier.
- Preform consolidation: remove contaminants and moisture.
- Draw: control diameter and tension for low loss.
- Coating and color: protect and identify each fiber.
| Layer | Role | Buyer Verification |
|---|---|---|
| Core | Carry light with minimal attenuation | Define purity and loss specifications |
| Optical cladding | Contain light, manage modal behavior | Confirm refractive index profile and geometry |
| Coating (primary) | Scratch protection and color ID | Verify adhesion and color coding |
FTTH Cable Production: Step By Step Line Setup From Buffering To Sheathing
A practical line setup walks each fiber from pay-off through buffering, stranding, and outer jacket to a finished reel.
Secondary coating & fiber coloring stations apply dual-layer UV-cured coatings (≈250 µm) and one-to-twelve-channel color coding for traceability. Stable UV curing and web tension reduce mix-ups and rework.
Buffering And Materials
Tight buffering (600–900 µm) improves handling and simplifies connector work. Choice of Hytrel, PVC, or LSZH changes flexibility, temp range, and flame/smoke behavior.
SZ Stranding & Organization
SZ stranding uses alternating lay to balance geometry and improve cable flexibility. Servo control for up to 24 fibers keeps lay pitch consistent and lowers attenuation risk.
Strength Members And Jacketing
Aramid yarn is the standard tensile element; it provides pull strength without stressing the fibers during installation.
Outer jacket extrusion using PVC, PE, or LSZH follows. Speeds often run 60–90 m/min and demand tight OD and concentricity control.
Armoring, Control Points
If crush or rodent resistance is needed, add steel tape or wire armor with adjustable tension. Operators track tension, cure state, concentricity, OD, and cooling to maintain quality.
| Step | Key Control | Typical Range |
|---|---|---|
| Secondary coating process | UV cure plus tension | ≈250 µm, high cure consistency |
| Tight buffer | Choice of material | 600–900 µm (Hytrel/PVC/LSZH) |
| Sheathing | Concentricity and OD | 60–90 m/min |
Optimize Production Speed And Process Control With Modern Automation
When factories push for 24/7 output, synchronized controls and tension systems become the backbone of reliable manufacturing.
PLC, HMI, Closed-Loop Tension For Steady Operation
Modern lines use Siemens PLC/HMI platforms to synchronize modules, manage recipes, and log process data. Closed-loop tension control protects the fiber during starts, stops, and speed changes.
Fiber Coloring Machine
Match Speed To Curing, Dimensional Control
Line speed often tops out when curing, cooling, or extrusion dimensional control can’t keep pace. UV cure completeness, water trough stability, and chill capacity set the true ceiling.
Layout, Changeover, And Procurement
Factory layout affects uptime: correct pay-off/take-up placement and protected fiber paths reduce damage and speed changeovers.
- Design quick-change tooling and documented setup steps for faster changeover.
- Specify industrial power (380 V AC ±10%) and a typical ≤55 kW load when ordering equipment.
- Demand remote diagnostics, spare parts availability, and fast service response from the equipment company.
| Focus Area | Operational Benefit | Typical Standard |
|---|---|---|
| System synchronization | Reduced scrap and repeatable runs | Siemens PLC/HMI platform |
| Tension regulation | Protects fiber; stable loss | Closed-loop, high accuracy |
| Layout/changeover | Less downtime | Quick-change tooling, staging |
Testing And Quality Control To Reduce Loss And Improve Delivery Reliability
Robust testing and clear quality control turn raw fiber into reliable, field-ready cable reels.
Start with optical validation. Inline attenuation testing and return loss checks confirm signal performance before reels leave the line.
Optical Checks & Signal Integrity
Attenuation testing is the primary guardrail against performance complaints. Higher loss values typically point to handling damage, microbends, or contamination.
Return loss checks target reflections that affect sensitive links and tight network margins.
Mechanical, Environmental Validation
- Tensile pull tests confirm strength members and installation safety.
- Crush and bend tests mimic real-world stresses during installation.
- Temperature cycling, moisture soak, and vibration tests de-risk outdoor and aerial routes.
| Test Type | Purpose | Typical Outcome |
|---|---|---|
| Attenuation test | Measure loss per kilometer | Pass/fail versus spec |
| Mechanical tests | Validate pull, crush, and bend | Installation performance rating |
| Environmental | Recreate field conditions | Durability confirmation |
Traceability links raw material lots, in-line data, and final test results to reel IDs. Correct reeling, labeling, and protective packaging preserve quality and speed customer acceptance and delivery.
Conclusion
A clear manufacturing plan ties product targets to the exact line modules and control limits needed for reliable output. Define the FTTH product, service environment, and measurable specifications before choosing equipment or layout.
Fiber fundamentals (core, cladding, coating) establish the optical baseline. Careful upstream handling preserves data integrity and keeps final quality within acceptance limits.
Configure buffering, organization/stranding, strength members, and jacket choices to match installation realities. Use automation and closed-loop controls to maintain speed, reduce scrap, and keep delivery predictable in U.S. markets.
Operational discipline matters: implement comprehensive testing, reel-level traceability, and documented quality systems so customers can accept reels quickly. Next step: convert these points into a purchasing checklist (spec targets, utilities, layout, acceptance tests) before requesting quotes or trials.
